OIS.360 – Eight Perspectives. One System.
Rethinking Oblique Imaging for the Next Generation of 3D Mapping
The demand for high-quality 3D city models, digital twins, and realistic geospatial datasets has never been greater. Municipalities, infrastructure operators, engineering firms, and mapping professionals require increasingly detailed and accurate representations of the built environment—while simultaneously facing growing needs to reduce project costs and improve operational efficiency.
Traditional oblique aerial imaging systems have addressed this challenge through multi-camera configurations, typically combining one nadir camera with four fixed oblique cameras. While proven and effective, these systems often involve significant hardware investment, complex calibration procedures, and increased operational overhead.
The OIS.360 introduces a different approach.

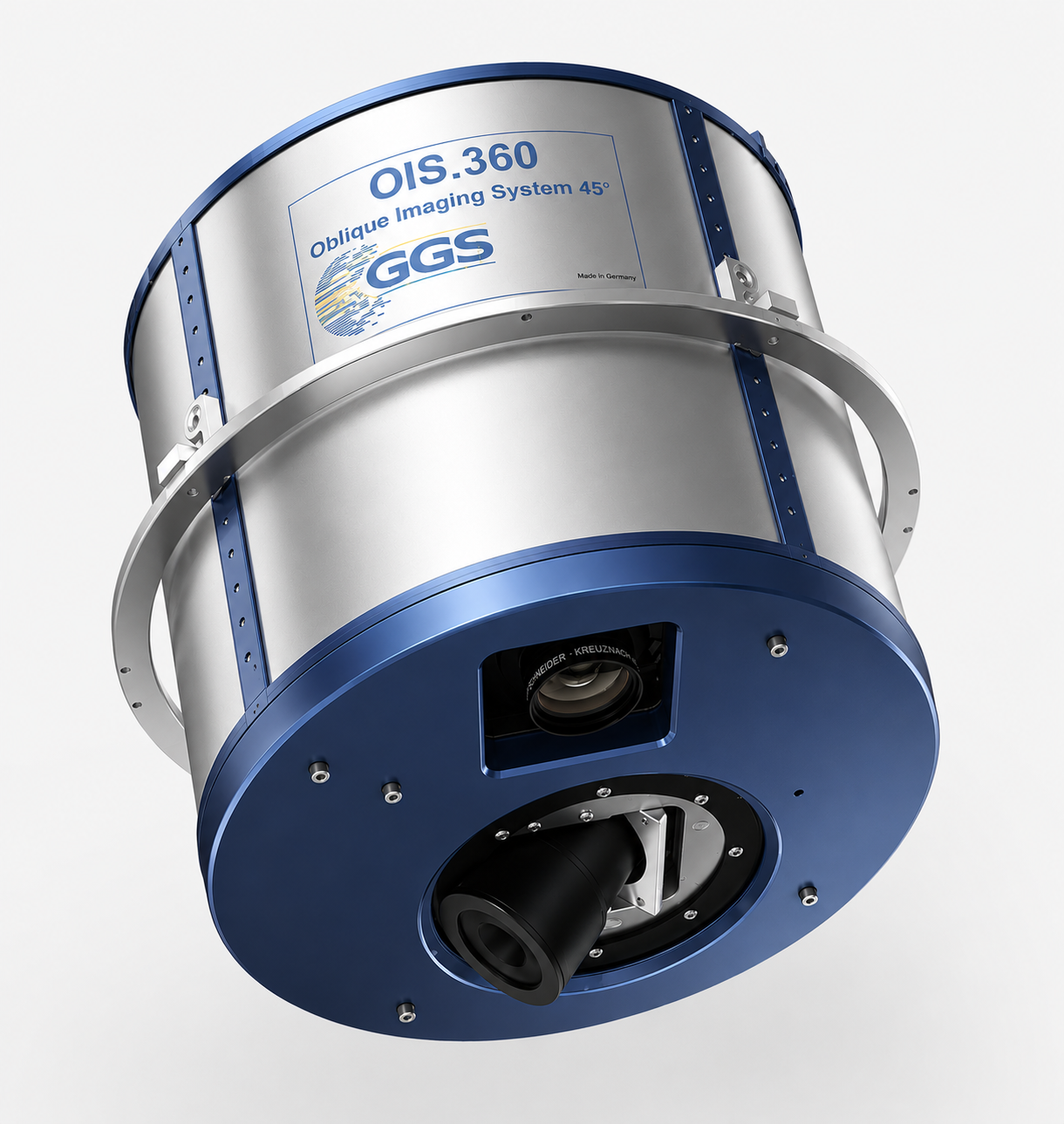

Developed by GGS, the OIS.360 is an innovative oblique imaging system that combines a high-resolution nadir camera with a single rotating oblique camera capable of capturing eight perspectives during a complete imaging cycle. Instead of increasing the number of camera heads, the system maximizes angular diversity, delivering rich multi-view imagery while significantly reducing system complexity.
The result is a powerful and efficient imaging solution designed for modern photogrammetry, 3D reconstruction, digital twin generation, and emerging visualization technologies.
More Perspectives. Less Complexity.
At the core of the OIS.360 is a simple idea: reconstruction quality is increasingly driven by viewpoint diversity rather than camera count alone.
By capturing eight oblique perspectives around the aircraft track, the system creates dense multi-view datasets that provide excellent coverage of façades, rooftops, and complex urban structures. The increased angular diversity improves image connectivity and supports highly detailed 3D reconstruction workflows.
At the same time, reducing the system architecture to only two cameras offers substantial operational advantages:
- Lower acquisition and integration costs
- Reduced system weight and complexity
- Simplified calibration and maintenance
- Greater installation flexibility on a wide range of aircraft platforms
- Reduced downtime through shutterless global shutter technology
The OIS.360 is designed to help aerial survey operators maximize data quality while minimizing operational effort.
Built for Modern Reconstruction Workflows
The geospatial industry is evolving rapidly. New processing approaches such as neural rendering and Gaussian splatting place greater emphasis on dense multi-view imagery and temporal consistency than traditional workflows.
The OIS.360 is ideally suited for these developments.
By capturing multiple perspectives in rapid succession using high-speed global shutter technology, the system provides highly consistent datasets that support both traditional photogrammetric processing and next-generation reconstruction methods.
Whether generating textured meshes, digital twins, reality models, or neural-rendered environments, the OIS.360 delivers the image geometry and perspective diversity required by modern workflows.
Proven Performance
Extensive flight campaigns and processing tests have demonstrated the capabilities of the OIS.360 in real-world environments.
Validation projects conducted over urban areas achieved aerotriangulation accuracies comparable to established oblique imaging systems while maintaining stable calibration and excellent reconstruction quality across façades, rooftops, and complex structures.
The system has been successfully processed using leading photogrammetric software platforms including:
- Skyline PhotoMesh
- iTwin Capture
- Agisoft Metashape
- Pix4D
The results confirm that innovative system architectures can provide highly competitive performance while significantly reducing hardware requirements.
Benefits include:
Distortion-free image acquisition during aircraft motion
Precise exposure timing
Consistent geometric performance
Elimination of mechanical shutter wear
Reduced maintenance requirements
Improved operational availability
Rethinking Oblique Imaging for the Next Generation of 3D Mapping
The OIS.360 is designed for:
3D City Modeling
Digital Twin Production
Urban Mapping
Corridor Mapping
Infrastructure Documentation
Asset Management
Reality Capture
Orthophoto Generation
Gaussian Splatting and Neural Rendering Workflows
Technical Overview
OIS.360 System Architecture
Rotating Oblique Camera
The oblique camera rotates around the vertical axis and captures eight viewing directions during a complete imaging cycle.
- Phase One iXM GS120, metric Camera @120 Mpix, 80 mm lens, landscape
- 45° oblique viewing angle
- Eight perspectives per rotation
- 0°,45°,90°,135°,180°,225°,270°,315° Heading
- Up to 5 frames per second
- Complete rotation cycle in approximately 2 seconds
- Global shutter technology for distortion-free imaging
- Optional lenses: 35mm, 50mm, 90mm,
Optional Nadir Camera;
- Phase One iXM 100 or iXM-RS 150, metric Camera,
- 70 mm lens, camera mounted landscape
- Optional lenses: 50mm, 80mm, 90mm, 110mm
- Optional 2nd Cameras for NIR (4 Band Solution)
most common bundles: (ready to go)
OIS.360 in the box:
- PhaseOne iXM GS120 with 80 mm lens –
- Integrated Industrial PC with AeroCapture –
- GNSS-System – Interface to FMS
OIS.360 v (RGB nadir) in the box:
- PhaseOne iXM GS120 with 80 mm lens –
- PhaseOne iXM-RS 150 nadir camera with 70 mm lens
- Integrated Industrial PC with AeroCapture –
- GNSS-System- Interface to FMS
OIS.360 vn (4 band nadir) in the box:
- PhaseOne iXM GS120 with 80 mm lens –
- PhaseOne iXM-RS 150 nadir camera Vis (RGB) with 70 mm lens
- PhaseOne iXM-100 nadir camera AC (NIR) with 50 mm lens
- Integrated Industrial PC with AeroCapture –
- GNSS-System – Interface to FMS
Physical Specs:
| Weight | Approx. 15 kg/span> |
| Diameter | Diameter |
| Height | Approx. 40 cm |
| Power Consumption | 150–250 W @ 28V DC |
| Interfaces | LAN, USB, RS232 |
| Geotagging | Integrated GNSS, optional GNSS-INS |
| Flight Management Interface | Supported: AeroTopoL, Topoflight, AeroPlan + AeroFlight |
OIS.360 Technical Specifications
Here you can download all technical specifications as a PDF file.
